1, Top design and accessories:

The crusher uses CLAAS technique, the floating crushed feed; Knife roll with John Deere technology, chopped length adjustable; Trelleborg 500 meridian wide tires, off-road performance strong; Germany Linde hydraulic walking system, safe and stable;310 horsepower Deutz engine, powerful;

2, Efficient operation:

Turntable cutting table, harvest crop height is not restricted, harvest width 3000mm; Feeding width of 750mm, large feed roller floating range, to ensure large material throughput, to ensure the effective flattening of the material.

3, Excellent design:

Double handle one control; Multi - function display integrated video surveillance system and the whole car information system;6.5 meters of body, flexible operation; Both the driver and the co-pilot can control the firing mechanism.







4QZ-1400 Forage harvester
Specification

Item

Unit

Technical Specifications



Overall dimension(L*W*H)

mm

8150*3100*3450mm




Silage header style



Disc type



Lift range of the header

mm

120-830



Working width

mm

2900



Whole weight

kg

8800



Working speed

Km/h

2 to 6



Production efficiency

ha/h

0.4-1



Stubble height

mm

≤150



Cut length of straw

mm

8/16/25



Number of ensilage knife

pc

36



Diameter of cut roller

mm

630



Rotation speed of cut roller

R/min

1200



Feeding flux

Kg/s

14



Throw distance (max)

m

8



 throw tub Scop of turn round

/

270 degree



Height of throw

m

5.35



Motor  power

Kw

210



Motor output rotation speed

r/min

2200



Wheel base(front)

mm

2250



Wheel base (rear)

mm

1580



Axle base

mm

2300

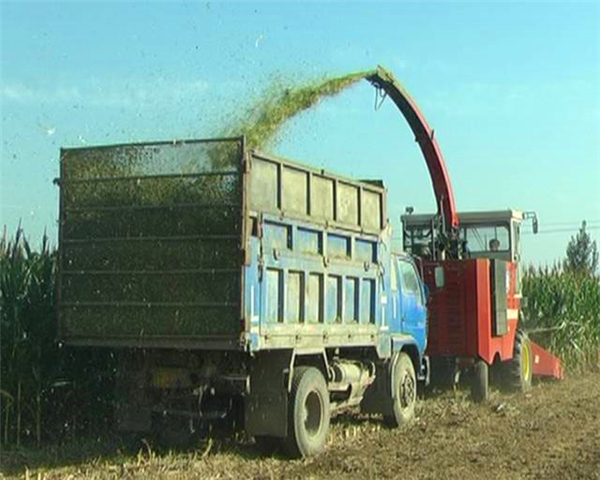

Use case
